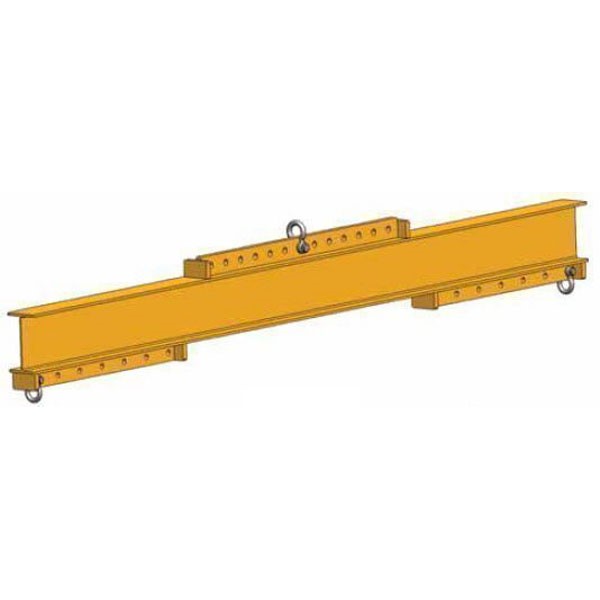

Universal Lifting Spreader Beam - UNVB-4-10

Peerless Industrial Universal Lifting / Spreader Beam.

4 Ton Capacity with a 10 ft. Spread.

SKU: PL-UNVB-4-10
Manufacturer part number: PL-UNVB-4-10
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

PeerlessĀ Universal Lifting Spreader Beam - UNVB-4-10

Benifits

  • This style of universal beam can be utilized as a lifting beam where headroom is limited or a spreader beam where extra stability is required. As a lifting beam, the upper lift point can be easily adjusted to lift an off center load.
  • Can be configured as an optional three or four point lifting system.
    Can be supplied with optional chain top rigging.
  • Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.


Options:

  • Chain top rigging
  • Three point lifting system
  • Four point lifting system
  • Additional lift points and spreads
  • Higher capacities
  • Additional lengths
  • Swivel hooks

*List Price includes one top and two lower shackles
Beam Only does not include shackles

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)4
Max. Spread (ft.)10
Min. Spread (ft.)5
Bail Adjustment40
Headroom20
Top Shackle (tons)4.75
Bottom Shackle (tons)4.75
Weight (Lbs)420
