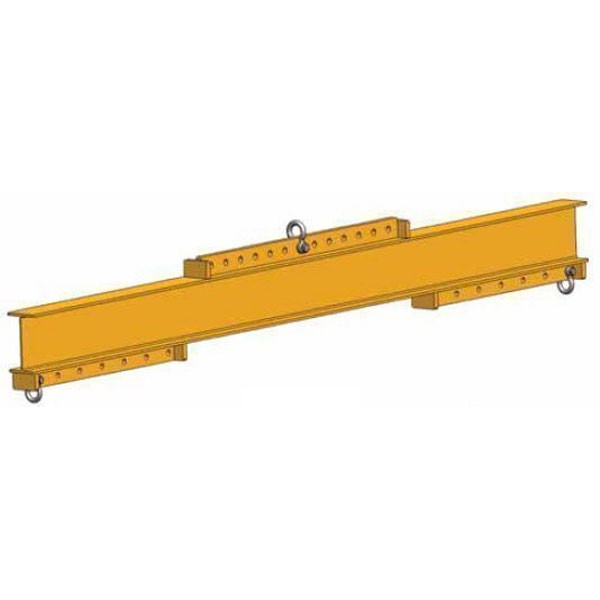

Universal Lifting Spreader Beam - UNVB-1-8

Peerless Industrial Universal Lifting / Spreader Beam.

1 Ton Capacity with a 8 ft. Spread.

Manufacturer part number: PL-UNVB-1-8
PRICE BREAKS - The more you buy, the more you save
i h
Ships in: Made to Order QuickShip within 10 Days

PeerlessĀ Universal Lifting Spreader Beam - UNVB-1-8


  • This style of universal beam can be utilized as a lifting beam where headroom is limited or a spreader beam where extra stability is required. As a lifting beam, the upper lift point can be easily adjusted to lift an off center load.
  • Can be configured as an optional three or four point lifting system.
    Can be supplied with optional chain top rigging.
  • Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.


  • Chain top rigging
  • Three point lifting system
  • Four point lifting system
  • Additional lift points and spreads
  • Higher capacities
  • Additional lengths
  • Swivel hooks

*List Price includes one top and two lower shackles
Beam Only does not include shackles

Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)1
Max. Spread (ft.)8
Min. Spread (ft.)4
Bail Adjustment32
Top Shackle (tons)1.5
Bottom Shackle (tons)1.5
Weight (Lbs)140
