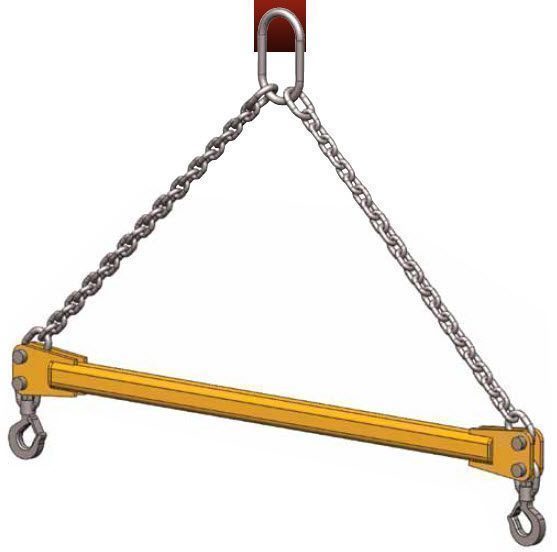

Spreader Beam, Standard Duty - SDSB-20-8

Utilized with upper rigging spread between two lift points that adds extra stability to the lift.

20 Ton Capacity with a 8 ft. Spread

SKU: PL-SDSB-20-8
Manufacturer part number: PL-SDSB-20-8
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless Industrial Spreader Beam - Standard Duty - SDSB-20-6

Benifits

  • This style of lifter is utilized with upper rigging spread between two lift points that adds extra stability to the lift.
  • This spreader beam should be utilized where headroom is not limited and comes standard with a pair of swivel hooks.
  • Can be supplied with optional chain or wire rope top rigging.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Spreader Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacities
  • Additional lengths
  • Chain top rigging
  • Wire rope top rigging

*Includes two swivel hooks with pins.
Beam Only does not include swivel hooks and pins.

Products specifications
Capacity (tons) From/To11 (to) 50 Tons
Capacity (tons)20
Outside Spread (ft.)8
Headroom72
Oblong ML Diameter1.75
Oblong ML Opening Width6
Oblong ML Opening Height12
Hook Opening2.27
Weight (Lbs)233
