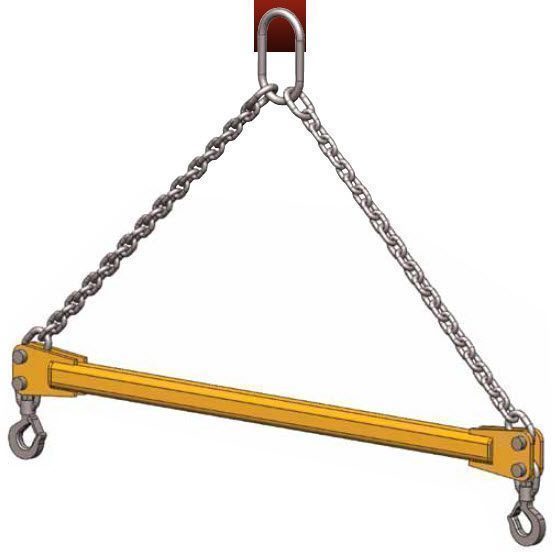

Spreader Beam, Standard Duty - SDSB-10-4

Utilized with upper rigging spread between two lift points that adds extra stability to the lift.

10 Ton Capacity with a 4 ft. Spread

SKU: PL-SDSB-10-4
Manufacturer part number: PL-SDSB-10-4
PRICE BREAKS - The more you buy, the more you save
Quantity
3+
5+
Price
$1,450.05
$1,346.48
$1,553.63
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless Industrial Spreader Beam - Standard Duty - SDSB-10-4

Benifit4

  • This style of lifter is utilized with upper rigging spread between two lift points that adds extra stability to the lift.
  • This spreader beam should be utilized where headroom is not limited and comes standard with a pair of swivel hooks.
  • Can be supplied with optional chain or wire rope top rigging.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Spreader Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options

  • Higher capacities
  • Additional lengths
  • Chain top rigging
  • Wire rope top rigging

*Includes two swivel hooks with pins.
Beam Only does not include swivel hooks and pins.

Products specifications
Capacity (tons) From/To6 (to) 10 Tons
Capacity (tons)10
Outside Spread (ft.)4
Headroom43
Oblong ML Diameter1.25
Oblong ML Opening Width4.38
Oblong ML Opening Height8.75
Hook Opening1.61
Weight (Lbs)100
