Short Span Lifting Beam (Plate Style) - 3Ton - 1 ft. Outside Spread - SSLB-.3-1

€523.69
PRICE BREAKS - The more you buy, the more you save
Quantity 3+ 5+
Price €488.78 €453.86
This lifting beam is ideal for short span applications and can be used where headroom is limited.
SKU: PL-SSLB-3-1
Manufacturer part number: SSLB-3-1
Ships in: Made to Order QuickShip within 10 Days

Available Options

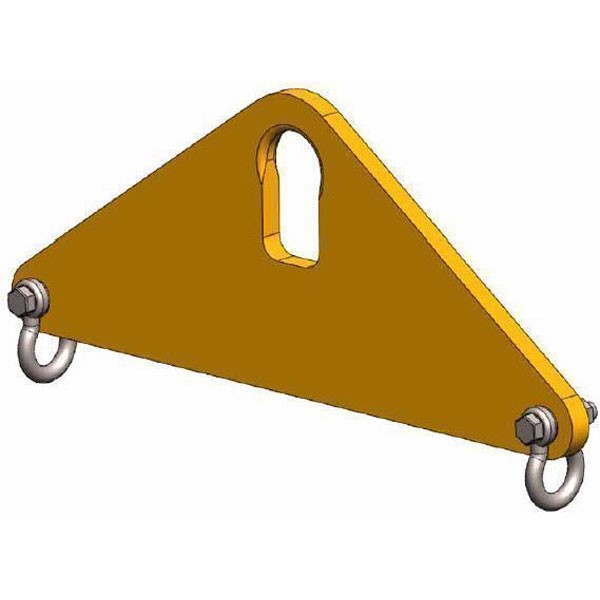

Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-3-1

Lifting Capacity 3 Ton with a  1 ft. Outside Spread

Benifits:

  • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
  • Supplied with a pair of shackles and one standard spread.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Upper shackle
  • Upper shackle w/oblong link
  • Hooks
Products specifications
Capacity (tons) From/To 1/4 Ton (to) 5 Tons
Capacity (tons) 3
Outside Spread (ft.) 1
Headroom 10.8
Bail Height 1.25
Bail Opening Width 3
Bail Opening Height 5
Bail Thickness 1
Shackle Size 3/4
Shackle Clearance 1.8
Weight (Lbs) 40
