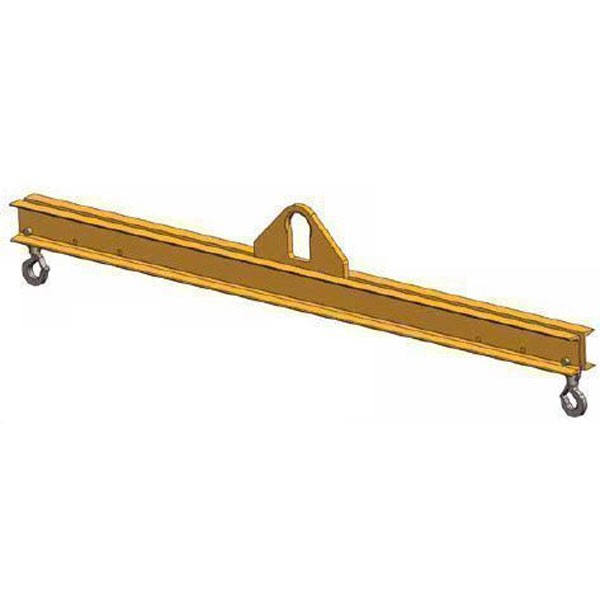

Channel Lifting Beam - 8 ft. with 20 Ton Capacity - Standard Duty - SDLB- 20-8

This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
SKU: PL-SDLB-20-8
Manufacturer part number: SDLB-20-8
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-20-8

Lifting Capacity 20 Ton with a 8 ft. Outside Spread

Benifits:

  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
  • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Shackle Lugs
  • Faspins
  • Integrated beam stands
Products specifications
Capacity (tons) From/To11 (to) 50 Tons
Capacity (tons)20
Outside Spread (ft.)8
Headroom34
Bail Height2.5
Bail Opening Width5
Bail Opening Height9
Bail Thickness1.5
Hook Opening2.27
Weight (Lbs)710
