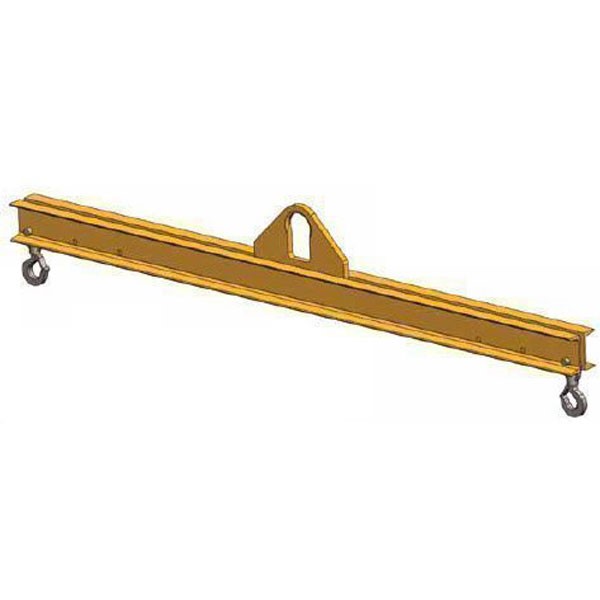

Channel Lifting Beam - 16 ft. with 1 Ton Capacity - Standard Duty - SDLB- 1-16

This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
SKU: PL-SDLB-1-16
Manufacturer part number: SDLB-1-16
PRICE BREAKS - The more you buy, the more you save
Quantity
3+
5+
Price
$2,147.25
$1,993.88
$2,300.63
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-1-16

Lifting Capacity 1 Ton with a 16 ft. Outside Spread

Benifits:

  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
  • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Shackle Lugs
  • Faspins
  • Integrated beam stands
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)1
Outside Spread (ft.)16
Headroom18
Bail Height0.875
Bail Opening Width3
Bail Opening Height5
Bail Thickness0.75
Hook Opening0.91
Weight (Lbs)390
