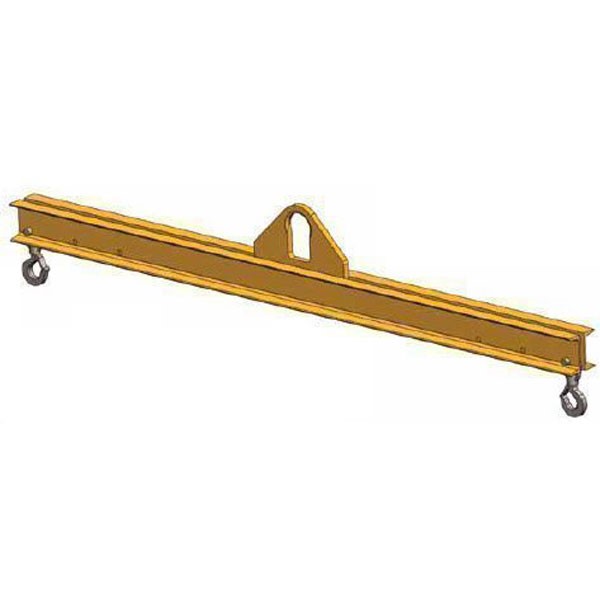

Channel Lifting Beam - 12 ft. with 5 Ton Capacity - Standard Duty - SDLB- 5-12

This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
SKU: PL-SDLB-5-12
Manufacturer part number: SDLB-5-12
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-5-12

Lifting Capacity 5 Ton with a 12 ft. Outside Spread

Benifits:

  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
  • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Shackle Lugs
  • Faspins
  • Integrated beam stands
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)5
Outside Spread (ft.)12
Headroom25
Bail Height2
Bail Opening Width4
Bail Opening Height7
Bail Thickness1.25
Hook Opening1.36
Weight (Lbs)570
