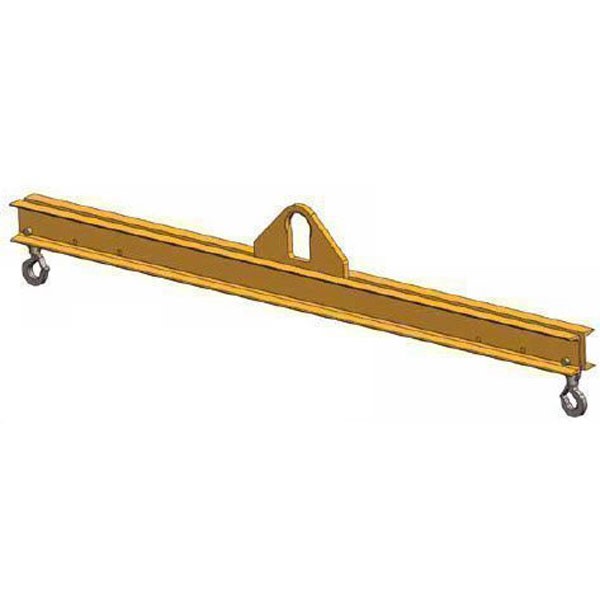

Channel Lifting Beam - 10 ft. with 2 Ton Capacity - Standard Duty - SDLB- 2-10

$1,578.38
PRICE BREAKS - The more you buy, the more you save
Quantity 3+ 5+
Price $1,473.15 $1,367.93
This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads.
SKU: PL-SDLB-2-10
Manufacturer part number: SDLB-2-10
Ships in: Made to Order QuickShip within 10 Days

Available Options

Peerless - Lifting Beam - Channel Design - Standard Duty SDLB-2-10

Lifting Capacity 2 Ton with a 10 ft. Outside Spread

Benifits:

  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads).
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1').
  • Engineered and manufactured to ASME B20.10 and BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates are supplied at No Additional Charge.

Options:

  • Additional lift points
  • Higher capacities (supplied w/upper shackle)
  • Additional lengths
  • Lower headroom bail
  • Additional hooks
  • Shackle Lugs
  • Faspins
  • Integrated beam stands
Products specifications
Capacity (tons) From/To 1/4 Ton (to) 5 Tons
Capacity (tons) 2
Outside Spread (ft.) 10
Headroom 17
Bail Height 0.875
Bail Opening Width 3
Bail Opening Height 5
Bail Thickness 0.75
Hook Opening 0.91
Weight (Lbs) 265
