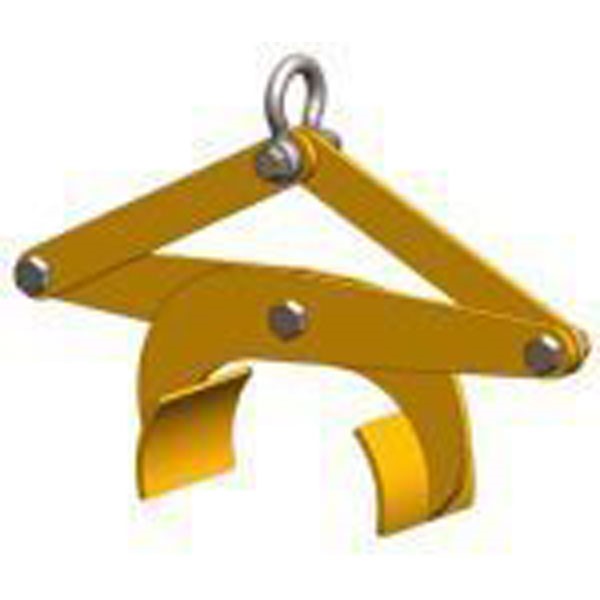

Bar Tong Adjustable - 1/2 ton - BTA-12-254

This adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
SKU: PL-BTA-12-254
Manufacturer part number: PL-BTA-12-254
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Bar Tong Adjustable - BTA - 12-254

Lifting Capacity from 1/2 Ton up to 1 Ton!

Benifits:

  • This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
  • Can be supplied with optional replaceable urethane pads for additional load protection.
  • The load must be balanced during the lift.
  • Can be used in pairs attached to a lifting/spreader beam to handle longer loads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Replaceable urethane pads
  • Higher capacities available
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity (tons)1/2
Bare Range Min/Max2.5/4
Urethane Pad Range Min/Max1.75/3.25
Headroom Min/Max13/15
Pad Width2.5
Bail Height0.63
Bail Opening Width1.69
Bail Opening Height1.69
Weight (Lbs)10
