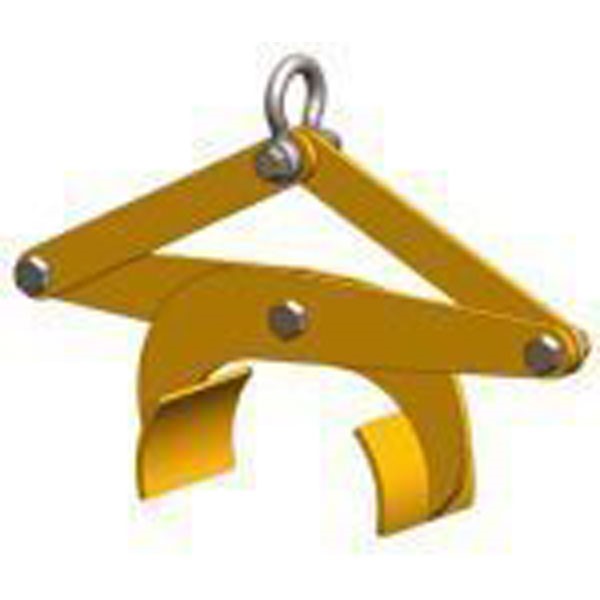

Bar Tong Adjustable - 1 ton - BTA-1-47

This adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
SKU: PL-BTA-1-47
Manufacturer part number: PL-BTA-1-47
The price must be from $0.00 to $20,000.00
i h
Ships in: Made to Order QuickShip within 10 Days

Peerless - Bar Tong Adjustable - BTA-1-47

Lifting Capacity from 1/2 Ton up to 1 Ton!

Benifits:

  • This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
  • Can be supplied with optional replaceable urethane pads for additional load protection.
  • The load must be balanced during the lift.
  • Can be used in pairs attached to a lifting/spreader beam to handle longer loads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Replaceable urethane pads
  • Higher capacities available
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity1600
Bare Range Min/Max4/7
Urethane Pad Range Min/Max3.25/6.25
Headroom Min/Max21/24
Pad Width5
Bail Height0.63
Bail Opening Width1.69
Bail Opening Height1.69
Weight (Lbs)25
