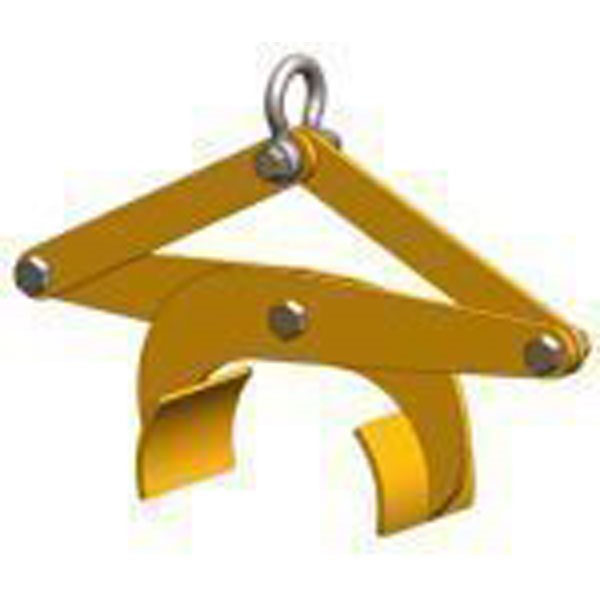

Bar Tong Adjustable - 1 ton - BTA-1-1520

This adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
SKU: PL-BTA-1-1520
Manufacturer part number: PL-BTA-1-1520
PRICE BREAKS - The more you buy, the more you save
Quantity
3+
5+
Price
$1,356.60
$1,259.70
$1,453.50
i h

Peerless - Bar Tong Adjustable - BTA-1-1520

Lifting Capacity from 1/2 Ton up to 1 Ton!

Benifits:

  • This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters.
  • Can be supplied with optional replaceable urethane pads for additional load protection.
  • The load must be balanced during the lift.
  • Can be used in pairs attached to a lifting/spreader beam to handle longer loads.
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
  • 100% of ALL Peerless Tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

Options:

  • Replaceable urethane pads
  • Higher capacities available
Products specifications
Capacity (tons) From/To1/4 Ton (to) 5 Tons
Capacity1600
Bare Range Min/Max15/20
Urethane Pad Range Min/Max14.25/19.25
Headroom Min/Max60/65
Pad Width8
Bail Height0.97
Bail Opening Width2.28
Bail Opening Height2.28
Weight (Lbs)225
